Project Gathering Of Magic

Purpose of the system

Project has in ming for creating system to organise "Magic The Gathering" (MTG) tournaments and easy environment for deck building

Non-Formal Specification

Data is saved in database. For creation and modification of data Application Programming Interface (API) is used. Majority of data is stored in our predefined database. However, card information is gathered from 3rd party API. For user to access system, internet browser of choice is used.

MTG player to enter tournament must register to system. Registered user can register to tournament and create decks. Administrator is actor who creates before mentioned tournaments, outlines duels inside tournaments and declares winners. Player can construct decks and enter them into tournaments to duel other players. Guests can inspect entire system while players can create/modify decks and administrator creates/modifies tournaments.

Functional Specification

• Guest can
  • Read card list
  • Read single cards information
  • Read deck list
  • Read singe decks information
  • Read tournaments list
  • Read single tournaments information
• Player can
  • Do everything as guest
  • Create deck
  • Modify his deck
  • Delete his deck
• Administrator can
  • Do everything as player
  • Create tournament
  • Modify tournament
  • Delete tournament
  • Create duel
  • Modify duel
  • Delete duel

Technological specification

System consist of

• Front-End - generated raw html files within server using EJS engine
• Back-End - Node.js
• Database - MySQL
• MTG card API - https://api.magicthegathering.io

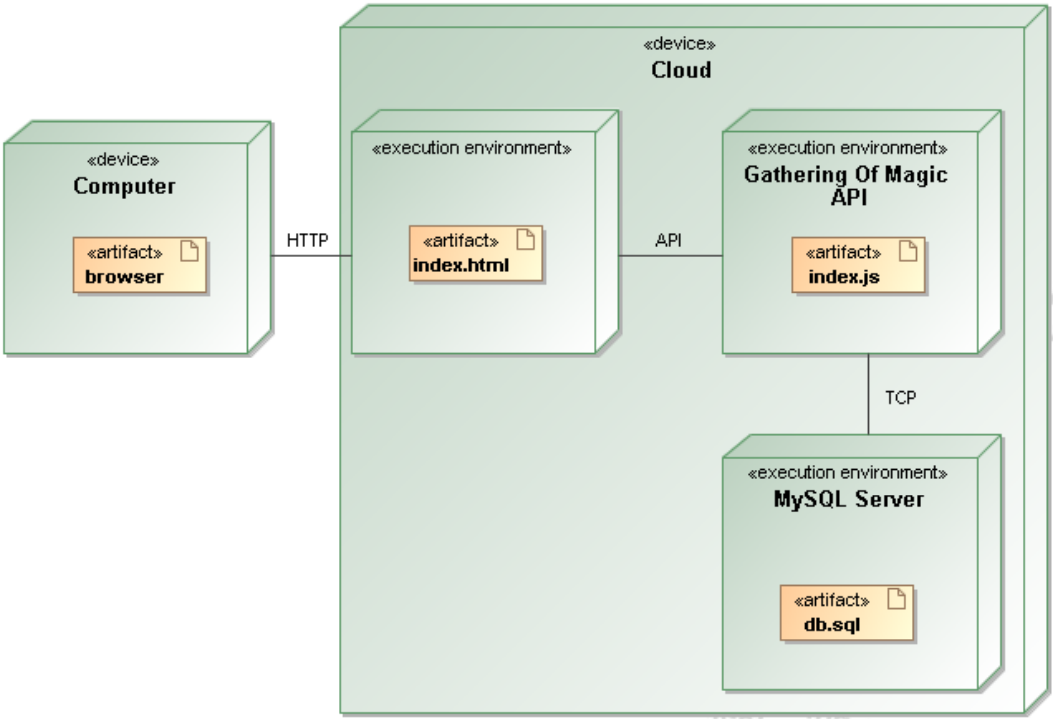

For deploying system you must use architecture provided bellow. For publishing cloud servers are used. Database can be separate, but is recommended to store them together as APIs server for faster communication speed between database and API. To access system you need to use interned browser and server will return raw HTML. Currently, website can be accessed through https://gathering-of-magic-jngponmmja-uc.a.run.app/ . It is hosted on Google cloud until free trial expires.

Wireframes

These are wireframes which define layout for all cases

• Cards
  • List



  • Single



• Deck
  • Create User privileges required



  • List
    • Guest



    • User or Admin



  • Single
    • Owner



    • Non-Owner



  • Update Accessible by owner of the deck.



• Duels
  • Create Requires admin privileges and is accessible through Tournament Single



  • Update Requires admin privileges and is accessible through Tournament Single



• Home
  • Guest



  • User or Admin



• Session
  • Login



  • Register



• Tournament
  • List
    • Admin



    • Non-Admin



  • Single
    • Owner



    • Non-Owner



Hierarchy

• Guest can access only GET methods
• Registered Guest is User and can do as much as Guest and modify Decks
• Admin is User with higher privilege level and can do as much as User and organiser tournaments, create/modify duels
• This chapters format Method Required Privilege

/cards

• GET Guest
  • 200
    • Returns card list (default GET params: page = 1, pageSize = 10)
  • GET example
    • Request GET api/v1/cards
    • Response:

    [
      {
        "id": 1,
        "card": {
          "name": "Ancestor's Chosen",
          "manaCost": "{5}{W}{W}",
          "cmc": 7,
          "colors": [
            "W"
          ],
          "colorIdentity": [
            "W"
          ],
          "type": "Creature — Human Cleric",
          "types": [
            "Creature"
          ],
          "subtypes": [
            "Human",
            "Cleric"
          ],
          "rarity": "Uncommon",
          "set": "10E",
          "setName": "Tenth Edition",
          "text": "First strike (This creature deals combat damage before creatures without first strike.)\nWhen Ancestor's Chosen enters the battlefield, you gain 1 life for each card in your graveyard.",
          "flavor": "\"The will of all, by my hand done.\"",
          "artist": "Pete Venters",
          "number": "1★",
          "power": "4",
          "toughness": "4",
          "layout": "normal",
          "variations": [
            "5f8287b1-5bb6-5f4c-ad17-316a40d5bb0c"
          ],
          "printings": [
            "10E",
            "JUD",
            "UMA"
          ],
          "legalities": [
            {
              "format": "Commander",
              "legality": "Legal"
            },
            {
              "format": "Duel",
              "legality": "Legal"
            },
            {
              "format": "Legacy",
              "legality": "Legal"
            },
            {
              "format": "Modern",
              "legality": "Legal"
            },
            {
              "format": "Paupercommander",
              "legality": "Restricted"
            },
            {
              "format": "Penny",
              "legality": "Legal"
            },
            {
              "format": "Premodern",
              "legality": "Legal"
            },
            {
              "format": "Vintage",
              "legality": "Legal"
            }
          ],
          "id": "b7c19924-b4bf-56fc-aa73-f586e940bd42"
        }
      },
      {...}
    ]

/cards/id

• GET Guest
  • 200
    • Returns card with specific id
  • 404
    • Card with provided id was not found
  • GET example
    • Request GET /api/v1/cards/1
    • Response:

    {
      "id": 1,
      "card": {
        "name": "Ancestor's Chosen",
        "manaCost": "{5}{W}{W}",
        "cmc": 7,
        "colors": [
          "W"
        ],
        "colorIdentity": [
          "W"
        ],
        "type": "Creature — Human Cleric",
        "types": [
          "Creature"
        ],
        "subtypes": [
          "Human",
          "Cleric"
        ],
        "rarity": "Uncommon",
        "set": "10E",
        "setName": "Tenth Edition",
        "text": "First strike (This creature deals combat damage before creatures without first strike.)\nWhen Ancestor's Chosen enters the battlefield, you gain 1 life for each card in your graveyard.",
        "flavor": "\"The will of all, by my hand done.\"",
        "artist": "Pete Venters",
        "number": "1★",
        "power": "4",
        "toughness": "4",
        "layout": "normal",
        "variations": [
          "5f8287b1-5bb6-5f4c-ad17-316a40d5bb0c"
        ],
        "printings": [
          "10E",
          "JUD",
          "UMA"
        ],
        "legalities": [
          {
            "format": "Commander",
            "legality": "Legal"
          },
          {
            "format": "Duel",
            "legality": "Legal"
          },
          {
            "format": "Legacy",
            "legality": "Legal"
          },
          {
            "format": "Modern",
            "legality": "Legal"
          },
          {
            "format": "Paupercommander",
            "legality": "Restricted"
          },
          {
            "format": "Penny",
            "legality": "Legal"
          },
          {
            "format": "Premodern",
            "legality": "Legal"
          },
          {
            "format": "Vintage",
            "legality": "Legal"
          }
        ],
        "id": "b7c19924-b4bf-56fc-aa73-f586e940bd42"
      }
    }

/decks

• GET Guest
  • 200
    • Returns deck list (default GET params: page = 1, pageSize = 10)
  • GET example
    • Request GET api/v1/decks
    • Response:

    [
      {
        "id": 29,
        "name": "Fiery Hail 2",
        "owner": 2,
        "ownerName": "Master",
        "cards": [
          960, 961, 962, 963, 964, 965, 966, 967, 968, 969, 970, 971, 972, 973, 974, 975, 976, 977, 978, 979, 980, 981, 982, 983, 984, 985, 986, 987, 988, 989, 990, 991, 992, 993, 994, 995, 996, 997, 998, 999, 1000, 1001, 1002, 1003, 1004, 1005, 1006, 1007, 1008, 1009, 1010, 1011, 1012, 1013, 1014, 1015, 1016, 1017, 1018, 1019, 1020, 1021, 1022, 1023, 1024, 1025, 1026, 1027, 1028, 1041, 1042, 1043, 1044, 1045, 1046, 1047, 1048, 1049, 1050, 1051, 1052, 1053, 1054, 1055, 1057, 1058, 1059, 1060, 1061, 1062, 1063, 1064, 1065, 1066, 1067, 1068, 1069, 1070, 1071, 1072, 1073, 1074, 1075, 1076, 1077, 1078, 1079
        ]
      }
    ]

• POST User
  • 201
    • Success. Header Location has redirection to created resource
  • 400
    • Missing required fields from body
    • Cards do not match integer array structure
  • 403
    • Deck must have minimum of 60 cards
    • User already has a deck with same name
    • IDs in card array has values not matching any data
  • 404
    • Owner of deck not found
  • POST example
    • Request POST api/v1/decks:

    {
      "name": "Storm From Within8",
      "cards": [
        960 ,961 ,962 ,963 ,964 ,965 ,966 ,967 ,968 ,969 ,970 ,971 ,972 ,973 ,974 ,975 ,976 ,977 ,978 ,979 ,980 ,981 ,982 ,983 ,984 ,985 ,986 ,987 ,988 ,989 ,990 ,991 ,992 ,993 ,994 ,995 ,996 ,997 ,998 ,999 ,1000 ,1001 ,1002 ,1003 ,1004 ,1005 ,1006 ,1007 ,1008 ,1009 ,1010 ,1011 ,1012 ,1013 ,1014 ,1015 ,1016 ,1017 ,1018 ,1019 ,1020 ,1021 ,1022 ,1023 ,1024 ,1025 ,1026 ,1027 ,1028 ,1029 ,1030 ,1031 ,1032 ,1033 ,1034 ,1035 ,1036 ,1037 ,1038 ,1039 ,1040 ,1041 ,1042 ,1043 ,1044 ,1045 ,1046 ,1047 ,1048 ,1049 ,1050 ,1051 ,1052 ,1053 ,1054 ,1055 ,1056 ,1057 ,1058 ,1059 ,1060 ,1061 ,1062 ,1063 ,1064 ,1065 ,1066 ,1067 ,1068 ,1069 ,1070 ,1071 ,1072 ,1073 ,1074 ,1075 ,1076 ,1077 ,1078 ,1079
      ]
    }

    • Response: Empty body, Header Location: api/v1/decks/ID

/decks/id

• GET Guest
  • 200
    • Returns deck with specific id
  • 404
    • Resource not found
  • GET example
    • Request GET api/v1/decks/29
    • Response:

    {
      "id": 29,
      "name": "Fiery Hail 2",
      "owner": 2,
      "ownerName": "Master",
      "cards": [
        960, 961, 962, 963, 964, 965, 966, 967, 968, 969, 970, 971, 972, 973, 974, 975, 976, 977, 978, 979, 980, 981, 982, 983, 984, 985, 986, 987, 988, 989, 990, 991, 992, 993, 994, 995, 996, 997, 998, 999, 1000, 1001, 1002, 1003, 1004, 1005, 1006, 1007, 1008, 1009, 1010, 1011, 1012, 1013, 1014, 1015, 1016, 1017, 1018, 1019, 1020, 1021, 1022, 1023, 1024, 1025, 1026, 1027, 1028, 1041, 1042, 1043, 1044, 1045, 1046, 1047, 1048, 1049, 1050, 1051, 1052, 1053, 1054, 1055, 1057, 1058, 1059, 1060, 1061, 1062, 1063, 1064, 1065, 1066, 1067, 1068, 1069, 1070, 1071, 1072, 1073, 1074, 1075, 1076, 1077, 1078, 1079
      ]
    }

• PATCH User
  • 204
    • Success. Does not have body
  • 400
    • Cards have corrupted format
    • Card id is out of range of available cards
  • 403
    • User already has deck named with same name
    • Deck must have minimum of 60 cards
  • 404
    • Deck not found
    • User not found
  • PATCH example
    • Request PATCH api/v1/decks/24:

    {
      "name": "Fiery Hail",
      "cards": [
        960 ,961 ,962 ,963 ,964 ,965 ,966 ,967 ,968 ,969 ,970 ,971 ,972 ,973 ,974 ,975 ,976 ,977 ,978 ,979 ,980 ,981 ,982 ,983 ,984 ,985 ,986 ,987 ,988 ,989 ,990 ,991 ,992 ,993 ,994 ,995 ,996 ,997 ,998 ,999 ,1000 ,1001 ,1002 ,1003 ,1004 ,1005 ,1006 ,1007 ,1008 ,1009 ,1010 ,1011 ,1012 ,1013 ,1014 ,1015 ,1016 ,1017 ,1018 ,1019 ,1020 ,1021 ,1022 ,1023 ,1024 ,1025 ,1026 ,1027 ,1028 ,1029 ,1030 ,1031 ,1032 ,1033 ,1034 ,1035 ,1036 ,1037 ,1038 ,1039 ,1040 ,1041 ,1042 ,1043 ,1044 ,1045 ,1046 ,1047 ,1048 ,1049 ,1050 ,1051 ,1052 ,1053 ,1054 ,1055 ,1056 ,1057 ,1058 ,1059 ,1060 ,1061 ,1062 ,1063 ,1064 ,1065 ,1066 ,1067 ,1068 ,1069 ,1070 ,1071 ,1072 ,1073 ,1074 ,1075 ,1076 ,1077 ,1078 ,1079
      ]
    }

    • Response: Empty body
• DELETE User
  • 204
    • Success. Does not have body
  • 403
    • Deck already used in tournament CAN NOT be deleted
  • Delete example
    • Request DELETE api/v1/decks/29
    • Response: Empty body

/duels

• GET Guest
  • 200
    • Returns duel list (default GET params: page = 1, pageSize = 10)'
  • GET example
    • Request GET api/v1/duels
    • Response:

    [
      {
        "id": 18,
        "tournament": 1,
        "decks": [
          29, 33
        ],
        "winner": 33
      },
      {...}
    ]

• POST Admin
  • 201
    • Success. Header Location has redirection to created resource
  • 400
    • Missing required fields from body
    • Decks do not match integer array structure
  • 403
    • Duel do not consist of exact number of 2 decks
    • Decks provided are same (can not play against itself)
    • Winner deck is not deck from dueling deck list
    • Provided decks have same owner, implying player is fighting against himself
  • 404
    • Tournament not found
    • Winner deck not found
    • Provided decks are not found in database
  • POST example
    • Request POST api/v1/duels:

    {
      "tournament": 2,
      "winner": 34,
      "decks": [37, 34]
    }

    • Response: Empty body

/duels/id

• GET Guest
  • 200
    • Returns duel with specific id
  • 404
    • Resource not found
  • GET example
    • Request GET api/v1/duels/19
    • Response:

    {
      "id": 19,
      "tournament": 2,
      "decks": [
        31, 32
      ],
      "winner": 31
    }

• PATCH Admin
  • 204
    • Success. Does not have body
  • 400
    • Decks do not match integer array structure
  • 403
    • Duel do not consist of exact number of 2 decks
    • Decks provided are same (can not play against itself)
    • Winner deck is not deck from dueling deck list
    • Provided decks have same owner, implying player is fighting against himself
  • 404
    • Duel not found
    • Tournament not found
    • Winner deck not found
    • Provided decks are not found in database
  • PATCH example
    • Request PATCH api/v1/duels/28:

    {
       "tournament": 2,
       "winner": 2,
        "decks": [2, 5]
    }

    • Response: Empty body
• DELETE Admin
  • 204
    • Success. Does not have body
  • DELETE example
    • Request DELETE api/v1/duels/28
    • Response: Empty body

/tournaments

• GET Guest
  • 200
    • Returns tournament list (default GET params: page = 1, pageSize = 10)
  • GET example
    • Request GET api/v1/tournaments
    • Response:

    [
      {
        "id": 1,
        "username": "GameMaster",
        "location": "KTU Kompileriai",
        "duels": [
          18, 31, 32, 34, 35
        ]
      },
      {
        "id": 2,
        "username": "GameMaster",
        "location": "Akropolio Baitukas",
        "duels": [
          19, 26, 29
        ]
      }
    ]

• POST Admin
  • 201
    • Success. Header Location has redirection to created resource
  • 400
    • Missing required fields from body
  • 404
    • Organiser not found
  • POST example
    • Request POST api/v1/tournaments:

    {
      "location": "Antano Antanausko Gaming Lobby"
    }

    • Response: Empty body, Header Location: api/v1/tournament/ID

/tournaments/id

• GET Guest
  • 200
    • Returns duel with specific id
  • 404
    • Resource not found
  • GET example
    • Request GET api/v1/tournaments/1
    • Response:

    {
      "id": 1,
      "username": "GameMaster",
      "location": "KTU Kompileriai",
      "duels": [
        18, 31, 32, 34, 35
      ]
    }

• PATCH Admin
  • 204
    • Success. Does not have body
  • 404
    • Tournament not found
    • Organiser not found
  • PATCH example
    • Request PATCH api/v1/tournaments/1
    • Response:

    {
      "location": "Antano Antanausko Gaming Lobby"
    }

• DELETE Admin
  • 204
    • Success. Does not have body
  • 403
    • Tournament with duels assigned to it CAN NOT be deleted
  • DELETE example
    • Request DELETE api/v1/tournaments/1
    • Response: Empty body

Conclusions

Creating API is great if task is direct at solving problem. For big systems it is necessary to use API as work will get out of hand without structure. In general creating API isn't exactly to hard, however, developing on cloud is something else. Cloud service providers like money. Therefore, if you are new on cloud development and don't have free trial you will lose money fast. Therefore, good practise is to learn container paradigm (example Docker) as most of the cloud providers use mainly containers. Knowing them beforehand will minimize cost of developmental start-up.
