Add a logical database picker to the connection form and instance header

[xiajingg]

What

The logical database index had to be typed by hand — once in the connection
form, and again in the browser header — with no indication of how many
databases the server actually has.

Both places now use a select:

• the connection form's Select Logical Database field is a select instead
  of a numeric input
• the browser header replaces its inline number editor with the same select,
  so the index can be changed without reopening the connection form

The options come from the database count reported by the connection test
(databases in the connection info), so the list matches the server. Until a
connection has been tested, the default of 16 databases is used as a fallback.

Why

Typing the index makes it easy to pick a database that does not exist, and the
UI gives no hint of the valid range.

Changes

• api/.../database.service.ts — testConnection() now returns the
  connection info instead of void, so the UI learns the real database count.
  A private getConnectionInfo() does the work.
• api/.../database.controller.ts — the two connection-test endpoints return
  the info.
• ui/.../form/DbIndex.tsx — NumericInput → RiSelect.
• ui/.../instance-header/InstanceHeader.tsx — inline number editor →
  RiSelect.
• ui/.../instancesService.ts, ui/.../slices/instances/instances.ts —
  plumb the connection info through.

Tests

• DbIndex.spec.tsx (new, 5 cases): the control is a select rather than an
  input, the option count follows the reported database count, and the
  fallback is 16 when no connection has been tested.
• slices/tests/instances — 176 tests pass.
• npm run i18n:check, npm run lint:ui, npm run type-check — clean.

Screenshots

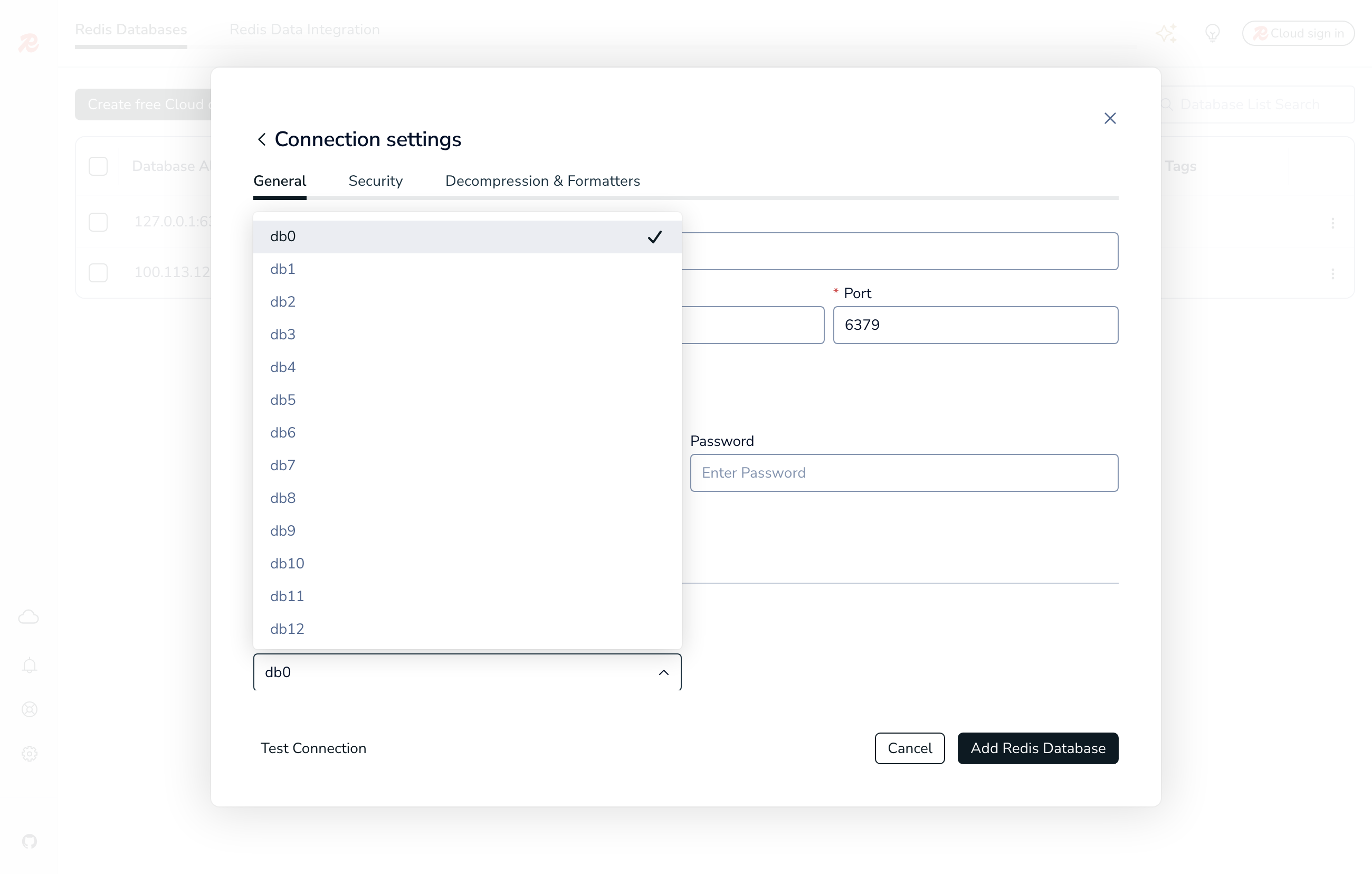

Connection form with the picker open (db0…db15, no db16):

The same control in the browser header (top left):

---

Note

Medium Risk
Connection-test API responses now include a JSON body (behavior change for API clients), and the server performs an extra Redis read after each successful test.

Overview
Replaces free-form logical database index entry with select pickers in the connection form and instance header, so users only choose indexes the server actually exposes.

API: POST /databases/test and POST /databases/test/:id now return RedisDatabaseInfoResponse | null instead of an empty body. After a successful test, DatabaseService opens a short-lived Redis client via getConnectionInfo() to read general instance info (especially databases); failures there are logged and return null without failing the test. Sentinel autodiscovery still returns null instead of throwing.

UI: testInstanceConnection returns { success, data }; testConnectionSuccess merges that payload into instanceInfo so the form can size options before save. DbIndex and InstanceHeader build db0…dbN-1 options from reported databases, with 16 as the pre-test default. The header uses pending state on the select while checkDatabaseIndexAction runs.

Tests: New DbIndex.spec.tsx; instances slice tests updated for the new testConnectionSuccess payload.

^{Reviewed by Cursor Bugbot for commit 1d9eca9. Bugbot is set up for automated code reviews on this repo. Configure here.}

[CLAassistant]

All committers have signed the CLA.

[cursor]

Cursor Bugbot has reviewed your changes using high effort and found 2 potential issues.

^{Reviewed by Cursor Bugbot for commit 1d9eca9. Configure here.}

[cursor]

Form picker uses wrong database count

High Severity

The connection form picker reads databases from connectedInstanceInfoSelector, which is the currently connected instance’s instanceInfo and is never cleared when opening add or edit. A previous connection’s count is used instead of the documented fallback of 16, so the list can omit valid indexes or include ones the target server does not have. Testing another host also merges into that same global field, so a later form still shows the last test’s count.

Additional Locations (1)

• redisinsight/ui/src/slices/instances/instances.ts#L153-L162



^{Reviewed by Cursor Bugbot for commit 1d9eca9. Configure here.}

[cursor]

Info fetch uses unresolved database model

Medium Severity

testConnection discards the model returned by createDatabaseModel and hands the original config to getConnectionInfo. That factory call resolves credentials onto a new object for Azure Entra ID and access-key strategies, so the follow-up client is created without those credentials. The info read is swallowed, and the picker never receives the real database count after a successful test.

Additional Locations (1)

• redisinsight/api/src/modules/database/database.service.ts#L408-L417



^{Reviewed by Cursor Bugbot for commit 1d9eca9. Configure here.}
