Schema-driven prototyping for Nuxt 4. Describe a tool as one TypeScript object — fields, computed values, collections, results and charts — and <ProtoTool> renders it, saved to IndexedDB through Y.js as you type.
- 📋 Schema-driven — fields, derived values, collections, result cards and visualizations in one TypeScript object
- 📴 Offline-first — Y.js + IndexedDB: every edit is saved locally; tabs stay in sync over BroadcastChannel
- 🧮 12 field types — number, text, textarea, select, segmented, toggle, range, rating, color, date, tags, linked-responses
- 📊 12 visualization types — progress, benchmark, bar, line, area, pie, donut and funnel charts, stat cards, comparison table, feature matrix, timeline
- 🗓️ Calendar, item panels, dashboards — ready-made components driven by the same schema
- 🧱 Headless mode — the persistence layer (
usePrototype,useProtoMap,useProtoList,useProtoText) without any UI - 🔐 Migrations, namespaces, encryption — versioned schemas, per-tenant isolation, AES-GCM encrypted storage
- 🛡️ Corruption recovery — detects a corrupt IndexedDB document; restores from server snapshots when a backend is configured
- 🧩 Extensible — custom field and visualization types via
defineProtokitExtension
Install the module and its peer dependencies:
# npm
npm install @websideproject/nuxt-protokit yjs y-indexeddb @nuxt/ui tailwindcss
# pnpm
pnpm add @websideproject/nuxt-protokit yjs y-indexeddb @nuxt/ui tailwindcss
# bun
bun add @websideproject/nuxt-protokit yjs y-indexeddb @nuxt/ui tailwindcssAdd it to your nuxt.config.ts:
export default defineNuxtConfig({
modules: ['@nuxt/ui', '@websideproject/nuxt-protokit'],
css: ['~/assets/css/main.css'],
protokit: {
serverSync: false, // local only — see "Server backup"
},
})The components are styled with Tailwind classes, so Tailwind has to scan the module — one line in your stylesheet (the path is relative to the CSS file):
/* app/assets/css/main.css */
@import "tailwindcss";
@import "@nuxt/ui";
@source "../../../node_modules/@websideproject/nuxt-protokit";The repo's playground runs these; the pictures are its CI screenshots.

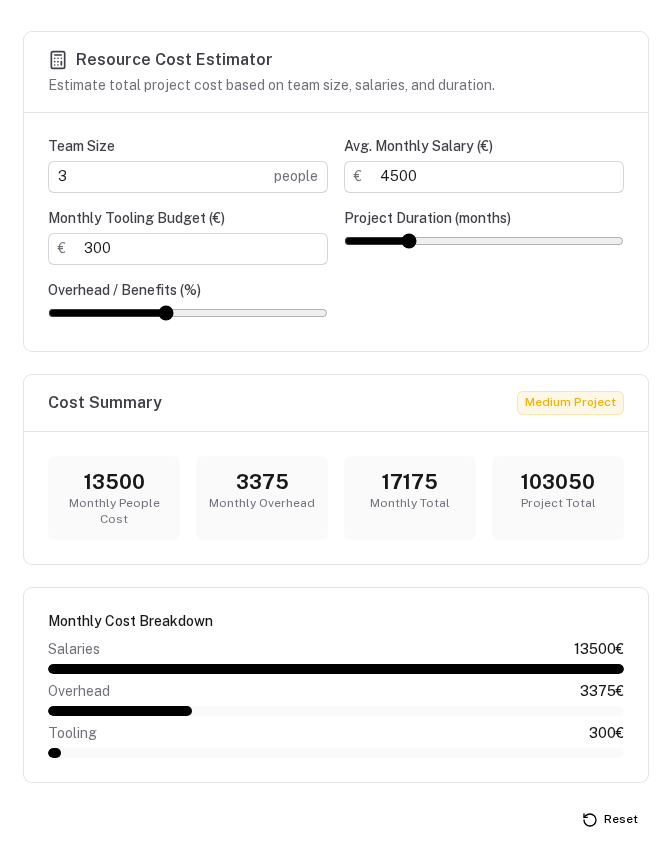

A tool from one schema — fields, derived values, a result card and a chart:

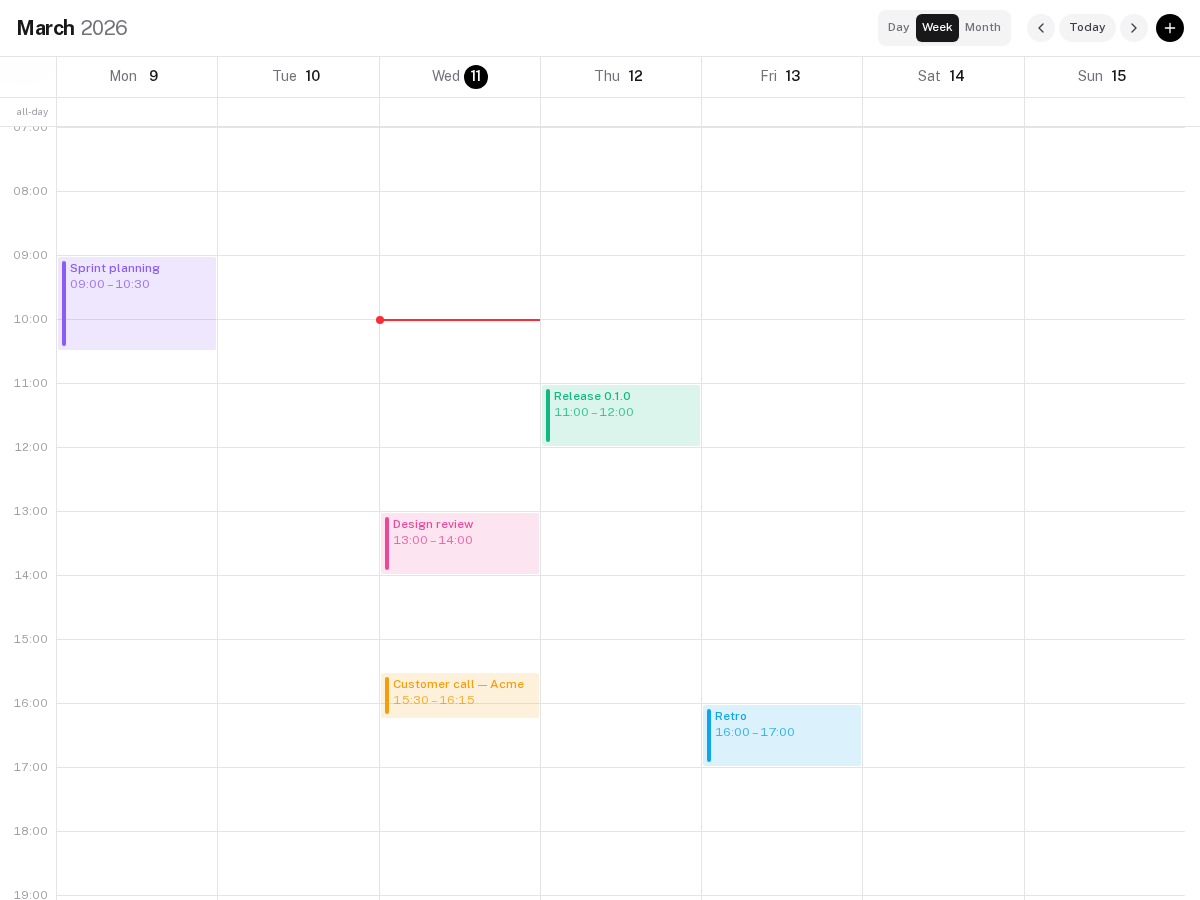

ProtoCalendar — month, week and day views with drag and drop:

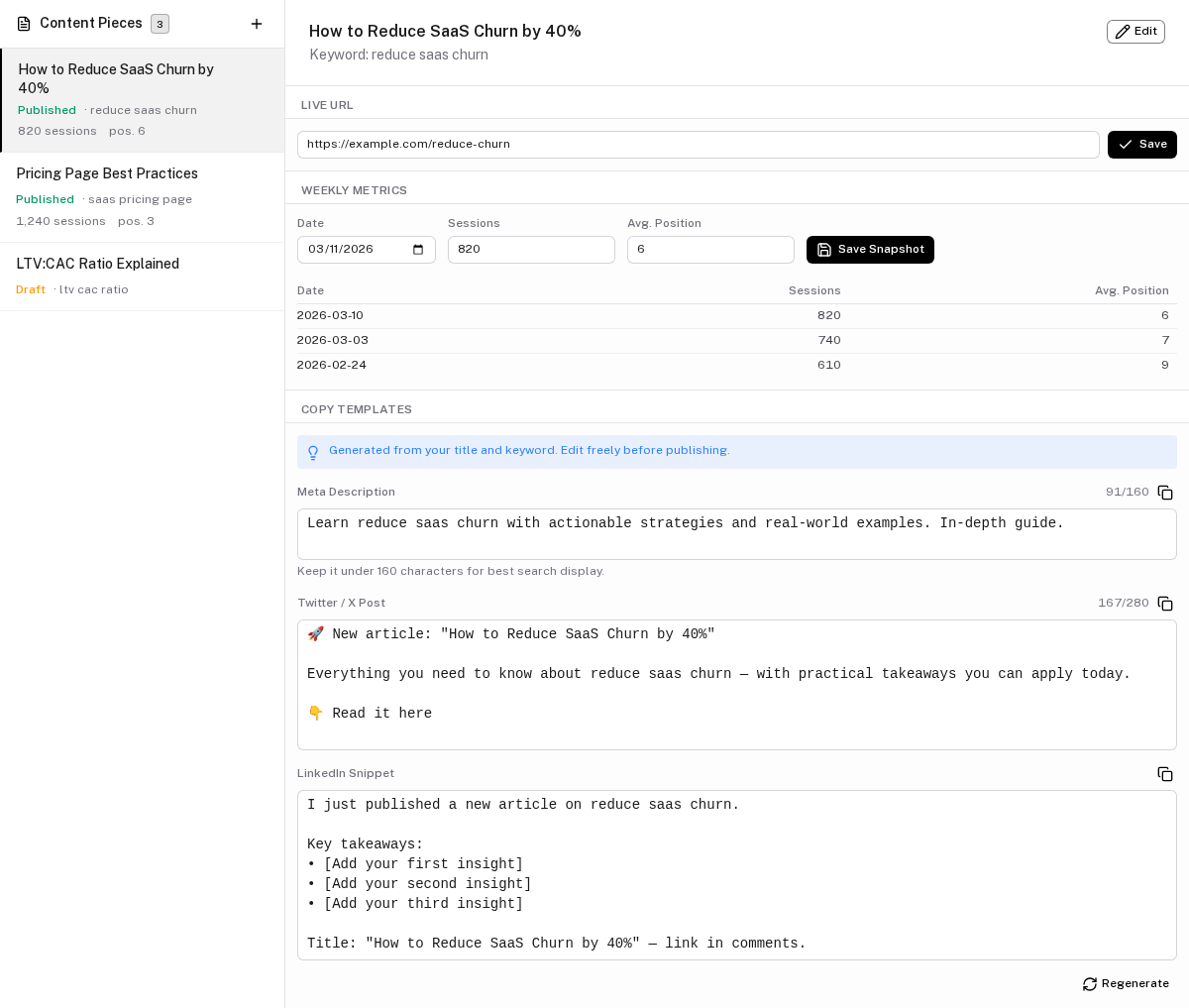

Item panels — a detail view for the selected collection item:
Visualizations — stat cards, line, area, bar, pie, funnel, benchmark and timeline:
With serverSync enabled (the default is true) the client pushes each document's Y.js state to your backend and asks
it for snapshots, which corruption recovery restores from: POST /api/yjs/sync, POST /api/yjs/snapshots/create,
GET /api/yjs/snapshots/:key, POST /api/yjs/snapshots/restore, GET /api/yjs/pull (base URL configurable with
serverSync: { baseUrl }). Failed requests are ignored, so the local copy keeps working without a backend; set
serverSync: false to make no requests at all. Protokit ships the client side only.
📖 Full documentation → websideproject.com/docs/nuxt-protokit
If you use Claude Code, install the skill plugin to give Claude accurate knowledge of nuxt-protokit APIs — schemas, composables, components, visualizations, offline persistence, and extensions.
/plugin marketplace add websideproject/nuxt-protokit
/plugin install nuxt-protokit-skillsThe plugin provides:
nuxt-protokit—definePrototype,usePrototype,ProtoTool, all field/viz types, collections, derived values, extensions, headless mode, and module authoring patterns
Every pull request publishes a preview package via pkg.pr.new, so you can install and test changes before they are merged.
# npm
npm install https://pkg.pr.new/@websideproject/nuxt-protokit@<pr-number>
# pnpm
pnpm add https://pkg.pr.new/@websideproject/nuxt-protokit@<pr-number>
# bun
bun add https://pkg.pr.new/@websideproject/nuxt-protokit@<pr-number>Contributions are welcome! Feel free to open an issue or submit a pull request.
# Install dependencies
bun install
# Generate type stubs
bun run dev:prepare
# Start the playground
bun run dev
# Run tests
bun run test| File | Stmts | Branch | Funcs | Lines |
|---|---|---|---|---|
| composables | ||||
| useEncryptedIdb.ts | 88.03% | 70.58% | 78.78% | 95.04% |
| useProtoCollection.ts | 83.78% | 67.85% | 85.71% | 87.87% |
| useProtoDerived.ts | 88.23% | 75% | 100% | 88.23% |
| useProtoDoc.ts | 52.3% | 51.03% | 42.5% | 54.26% |
| useProtoList.ts | 85.24% | 73.68% | 100% | 94.33% |
| useProtoMap.ts | 98.43% | 91.66% | 100% | 100% |
| usePrototype.ts | 96.87% | 90% | 75% | 96.87% |
| utils | ||||
| deepClone.ts | 100% | 100% | 100% | 100% |
| encryption.ts | 100% | 100% | 100% | 100% |
| formatters.ts | 94.73% | 89.36% | 100% | 96.42% |
| runMigrations.ts | 100% | 100% | 100% | 100% |
| All files | 50.55% | 48.97% | 42.91% | 52.73% |
Coverage from 135 tests (
bun run test:coverageinpackages/nuxt-protokit). The calendar, text, outputs, permissions and registry composables have no unit tests yet; the playground exercises them.
- Issues: Open an issue for bugs or feature requests
- Discussions: Join the discussion for questions and ideas
Published under the MIT license.
Made by websideproject and community 💛
